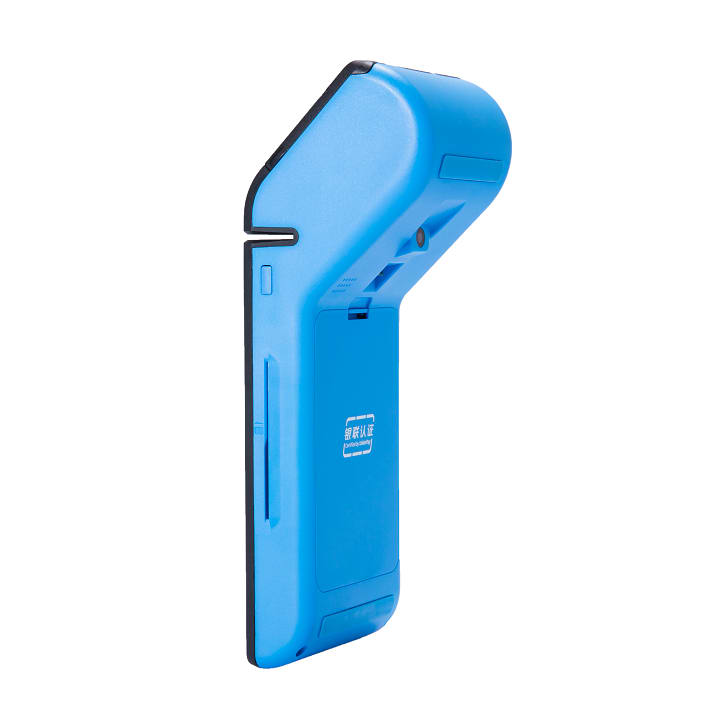

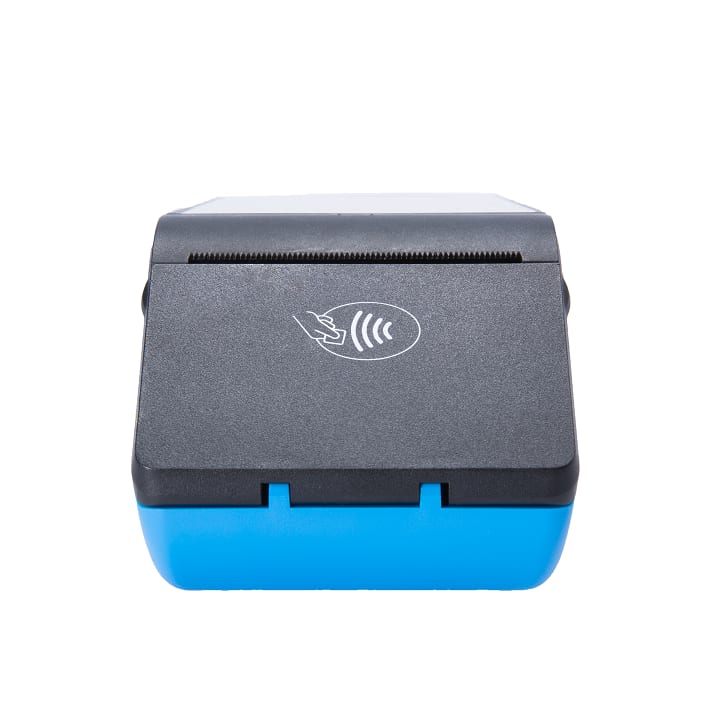

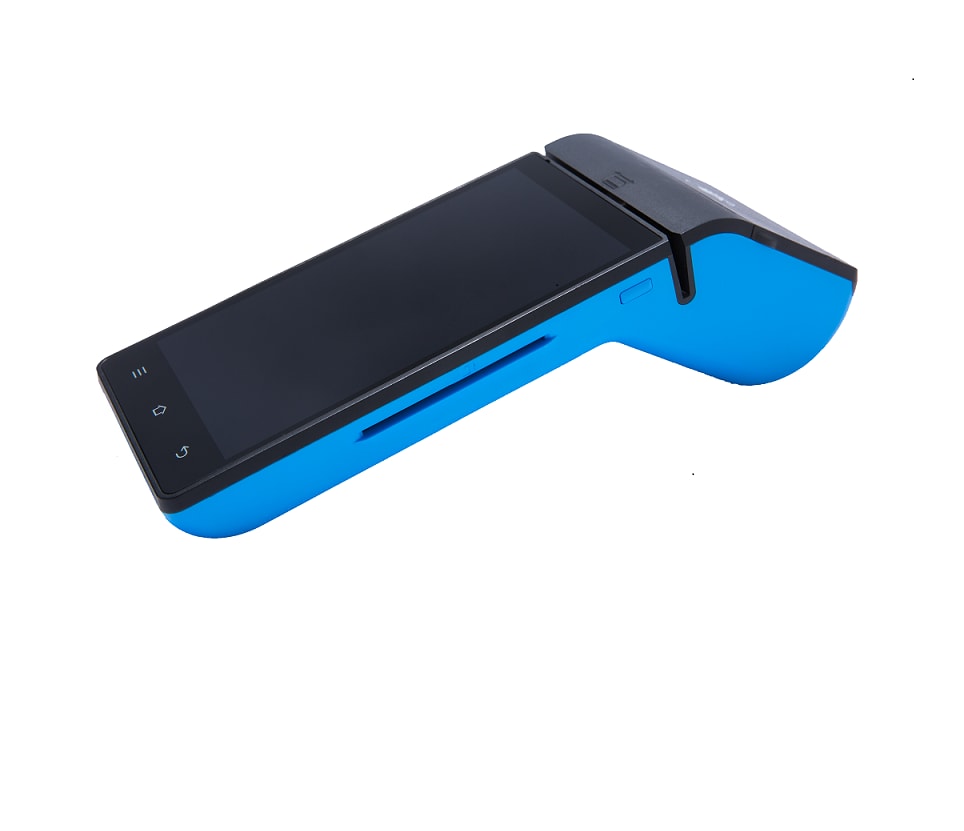

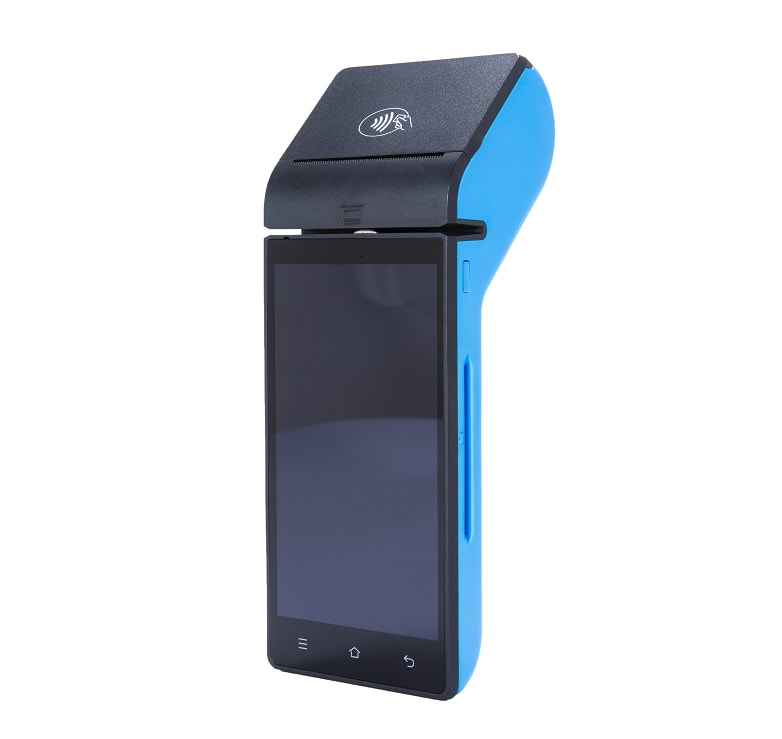

Smart POS terminal

KES30,000.00

1. Support magnetic stripe card, IC card , 13.56 MHz NFC card and PSAM card

2. Support the QR code scanning

3. 5.5-inch IPS highly sensitive touch screen with beautiful appearance

4. Support Bluetooth BT4.0, 4G, WIFI and other data transmission

5. Use internal password keyboard to ensure payment security

6. High-level protection mechanism, with anti-intrusion detection and disassemble self- destruction function

7. Safety Certification:

l UnionPay accept terminal product safety certification – PIN input device

l PBOC3.0 Level 1&2

l QPBOC3.0 Level 1&2

l EMV4.3 Level 1&2

l EMV4.3 Contactless Level 1

l UnionPay smart sale point terminal safety certification

l UnionPay accept terminal product Network certification

8. Support TDD-LTE/FDD-LTE/TD-SCDMA/CDMA/WCDMA/GSM/EVDO

Communication standards

9. Equipped with3.7V, 4000mAh large capacity lithium battery, can work continuously for more than 8 hours under normal working intensity

Description

MODULE Specifications Specifications Description
System Configuration CPU Quad core 1.2GHz
OS Android 7.0
RAM 1GB DDR3
Storage 8GB EMMC, Maximum 32GB external storage
Screen 5.5-inch IPS
TouchScreen Capacitive touch screen,support multi-touch
Sensor Gravity sensor
Indicator light Four independent Indicator light
Button One Switch button;Three touch buttons(Menu,Back,Home);Feed button
Battery 3.7V,4000mA
Function Configuration Camera Rear camera 5M AF
Printer 58mm Internal line thermal printer
Support 40mm diameter paper
Sound buzzer, microphone and internal speaker
Positioning / navigation Internal GPS,support AGPS
Magnetic stripe card reader Support 1/2/3 card double track,Comply with ISO7811 and 7812 specifications
IC card reader Support one piece of contact IC card, Comply with ISO7816 PBOC and EMV specifications
NFC Reader Comply with ISO/IEC14443Type A/B and Mifare standards
PSAM card Reader One PSAM slot,Comply with ISO7816 specifications
Keyboard Internal keyboard
Network Parameters Network standard TDD-LTE/FDD-LTE/TD-SCDMA/WCDMA/CDMA/GSM
Wireless LAN 802.11 b/g/n, Internal antenna
Support WEP,WPA,WPA-PSK,WPA-v2.0
Bluetooth Bluetooth V4.0+EDR
Physical Interface USB Interface Micro USB2.0,Charging is not supported
Charging Interface DC JACK,Use 10V 1000mA Charging power supply
Environment
Parameters Working temperature -20°C ~ 55°C
storage temperature -40°C ~ 70°C
Relative humidity 10% to 90%(no condensation)
Product Size Length × width × height / thinnest 211.5×80×70.3mm/24.6mm
